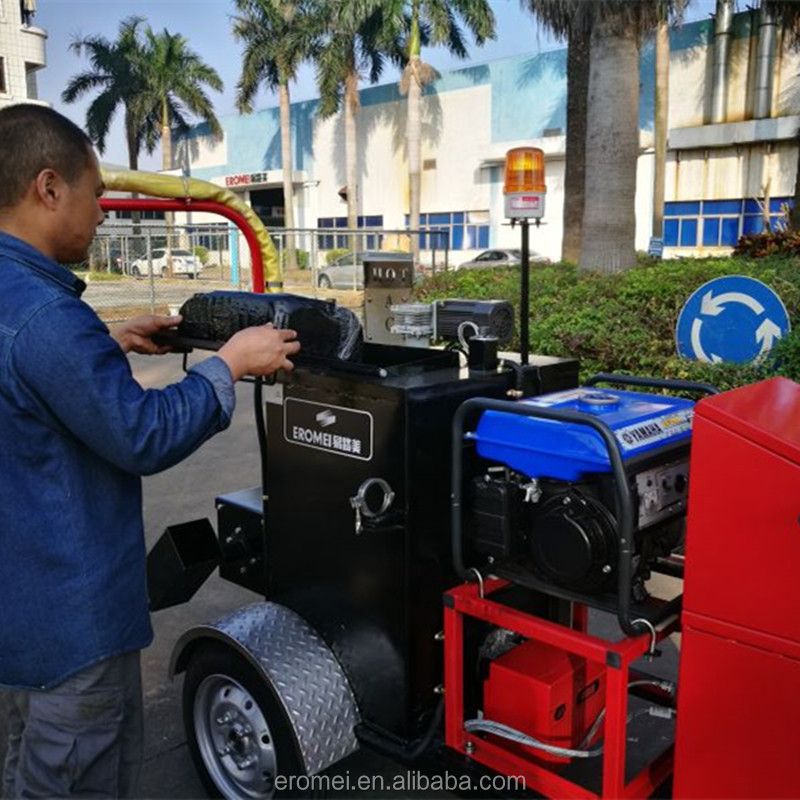

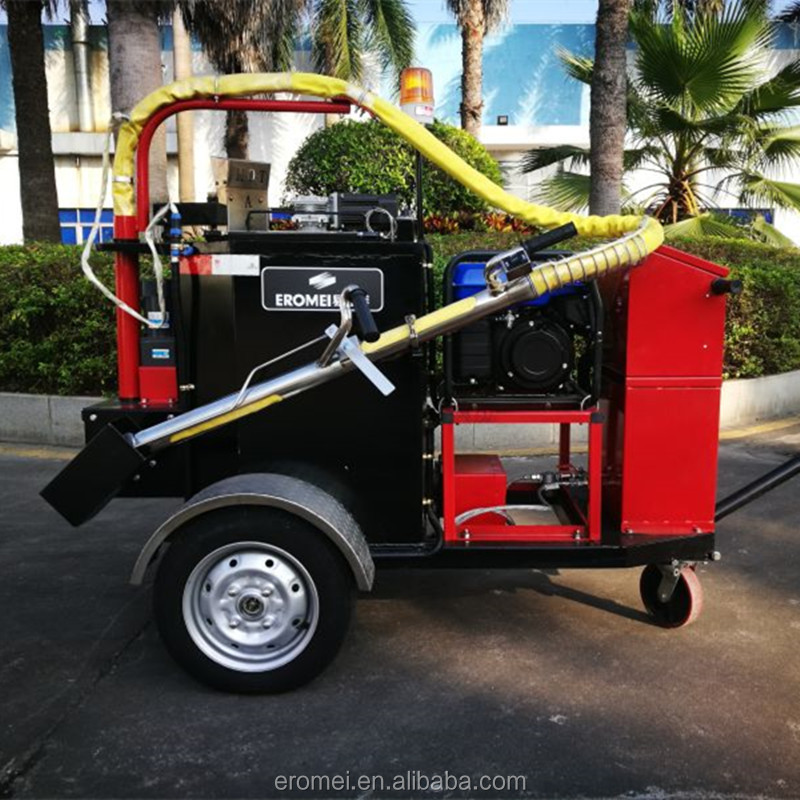

CSM-C100 Portable Road Sealing Machine For Crack

FOB Reference Price:Get Latest Price
US $16,000-20,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
EROMEI
Model Number:
CSM-C100
Dimension(L*W*H):
2150*1050*1620MM
Weight:
350KG
Power(W):
2.0KW
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Driving mode:
Portable / Trailer
Fue:
Gasoline
Engine-Generator:
Yamaha (EF2600FW)
Melting tank:
100L
Melting time:
40min/60kg
Color:
Red / Black
Electric heated hose:
4 Meter
Fuel Tank Capacity:
9L
Start-up Mode::
Manual
Rotation Speed::
3000r/min
SupplyAbility
SupplyAbility:
8 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard export packing or according to customer requirement
Port
Zhongshan, Shenzhen port or depends
Lead Time :
30-45 days after deposit receipt


Advantages in performance:

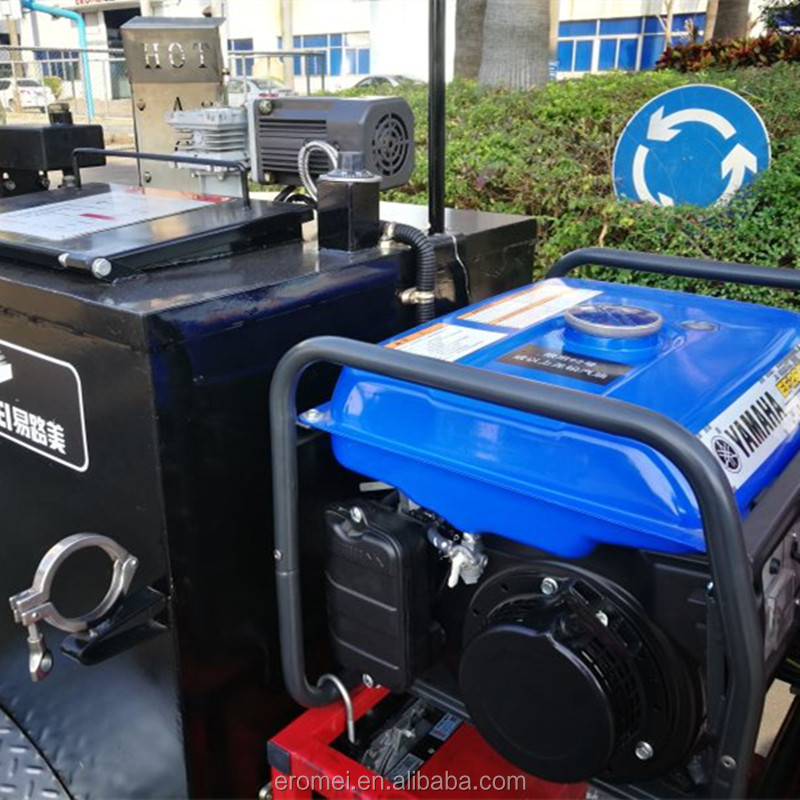

1.High performance generators

It is equipped with a 2KVA gasoline generator, which is easy to start. This high-performance silent generator can provide stable and efficient power for the crack sealing machine to ensure the efficiency of daily road maintenance. It is characterized with stable and reliable performance, low noise and low pollution.

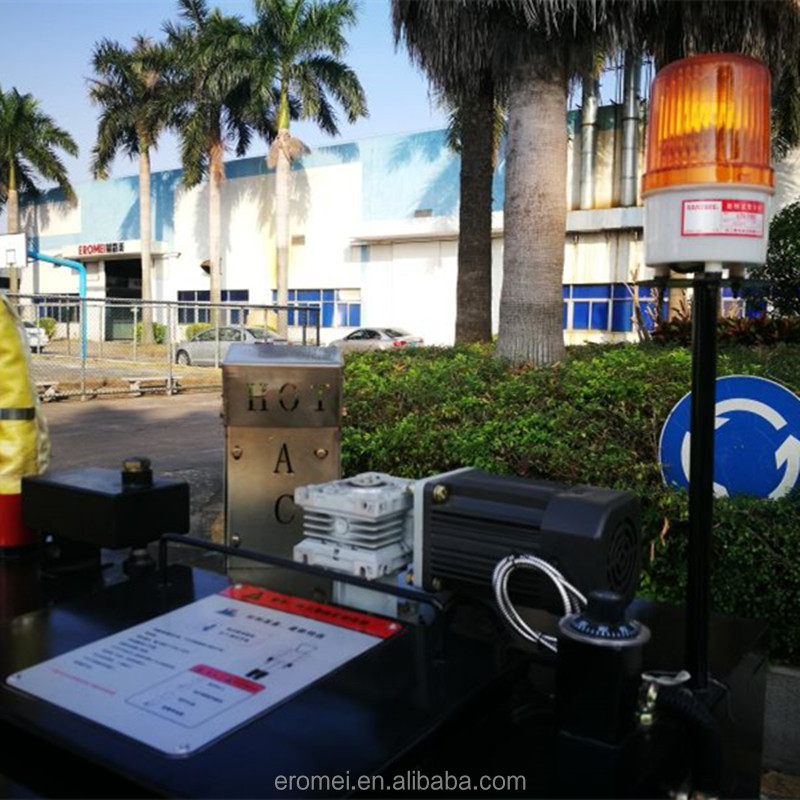

2. Centralized temperature control box

Japanese Omron Dual Digital LCD thermostat: It can be used to timely display and adjust the temperature of the sealant and hose. The thermostat can intuitively and accurately display the temperature. With the thermostat, the temperatures for specific types of sealants can be set by the customers; the temperature is automatically monitored; the working state of the machine is controlled to improve efficiency and save fuel.

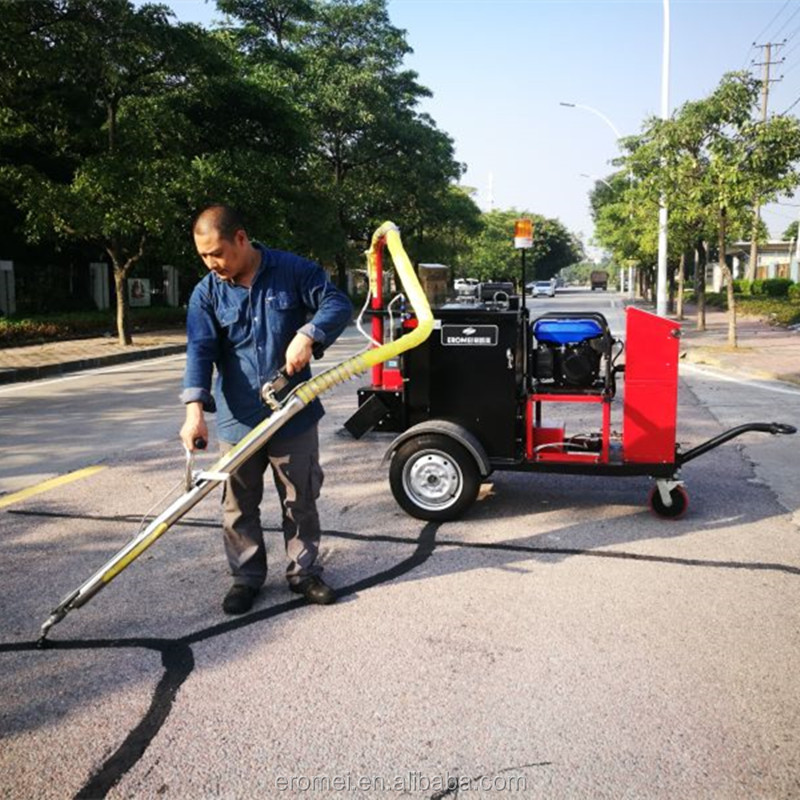

4. Sealing nozzle

Sealing nozzle: It is designed ergonomically to reduce the labor intensity of operators. The electric discharge switch controls the sealant from the valve, regulating the sealant flow and saving the sealant. It can ensure the optimal sealing result with the same sealant, at the same temperature and in the same pavement conditions.



5. Heat transfer oil system

The sealant is melted in the heater heated indirectly, which is equipped with the automatic thermostat system, so the temperature can be adjusted on demand. The sealant will never be burnt. The interlayer design of heater requires less heat transfer oil than similar products, which can also further raise the heating speed and reduce the replacement cost.



6. Combustion chamber of special geometric structure

The flame is blown to the isolating walls of combustion chamber at a downward angle of 45 degrees, without direct contact with the heater. The air in the chamber is heated, so the fuel oil is completed fired and the heat utilization rate is high.

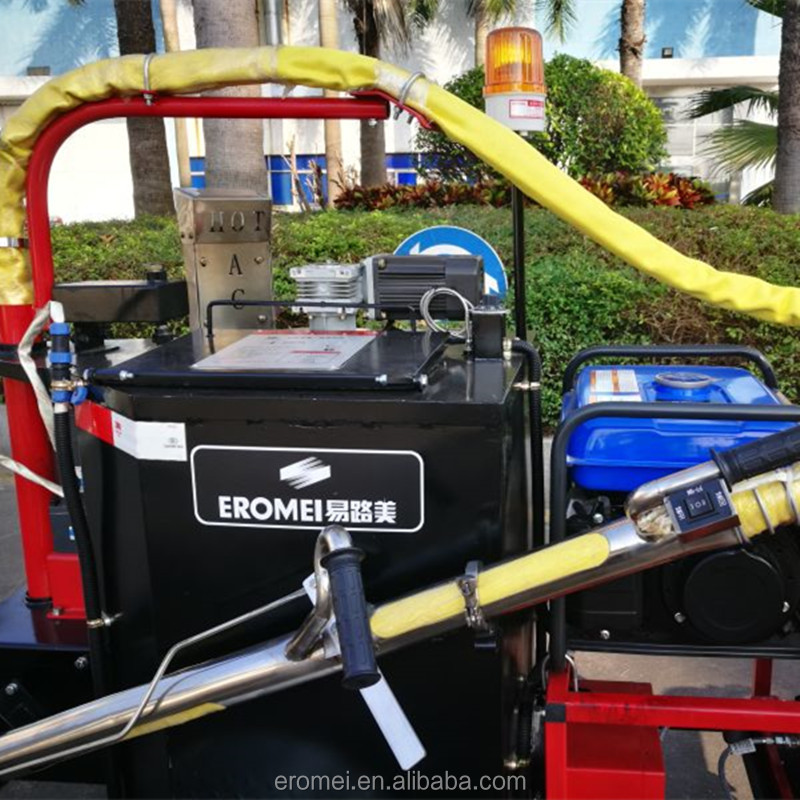

7. Discharging hose

It is equipped with a 4-meter long electric heating hose at 220V, which is seamless to avoid leakage in the combination of hose and sealing nozzle. The hose is highly flexible, which is suitable for filling horizontal and longitudinal cracks in actual road maintenance work while maintaining a long service life.



8. Simple replacement of sealing nozzle

According to the cracks and pavement conditions, select and replace the corresponding sealing nozzle to achieve the optimal sealing result.



9. Compact structure

It has a small size, light weight and high mobility, which can be operated by two operators to finish work efficiently.

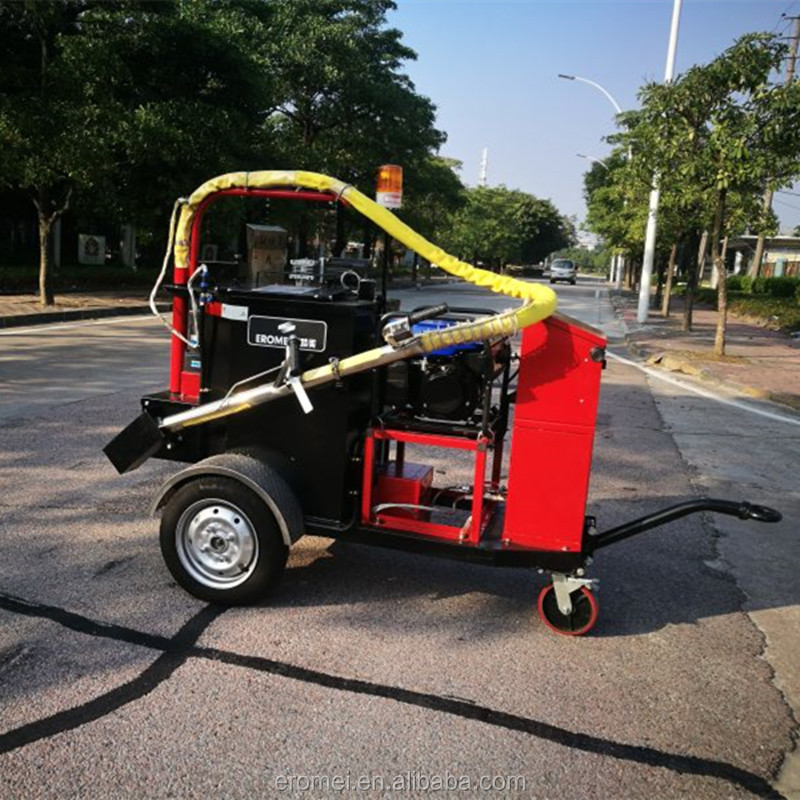

10. Travel mode

It can be transferred manually or towed by trailers.



CSM-C100 Main configuration and technical parameters



Model:

CSM-C100

Dimensions:

1750(2150) x1050 x 1620mm   L x W x H

Net Weight:

350KG

Tank Volume:

100L

Melting Time:

40min/60kg

Trailer Tires:

Automotive tires

Engine

Generator:

Yamaha (EF2600FW)

Start-up Mode:

Manual

Rotation Speed:

3000r/min

Rated Power:

2.0 KVA

Fuel:

Gasoline

Fuel Tank Capacity:

9L

Advantages in Performance:

High performance generator, operating stably and reliably, with low noise and low pollution.

Feeding System

Material Pump:

Flow: 10L/min Pressure: 0.08MPa

Material Pump Motor:

0.2KW, speed regulating motor

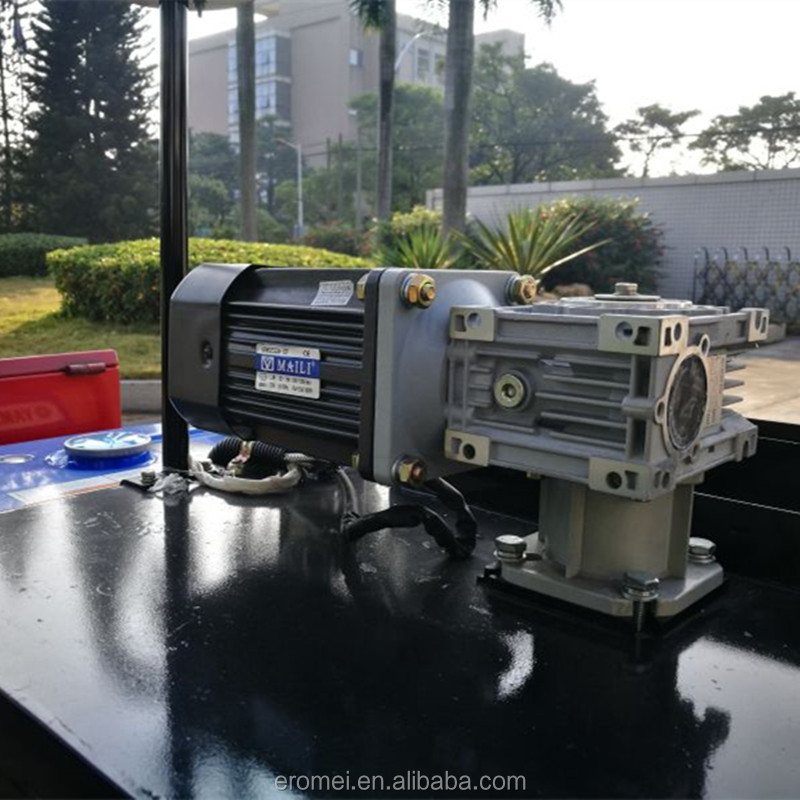

Stirrer Motor:

0.25 KW, constant speed motor

Automatic Thermostat System:

Thermostat:

Omron, Japan

Thermocouple

Imported K-type thermocouple

Heat Transfer Oil:

L-QBB320 Great Wall L-QBB320



Heat Transfer Oil Volume:

20L

Electric Heating Hose and Burner

Burner:

Riello 220V     50KW / h

Electric Heating Hose:

220V hose made in China, 4m in length

Fuel oil:

0 # Diesel Oil

Diesel Tank Volume:

20L
